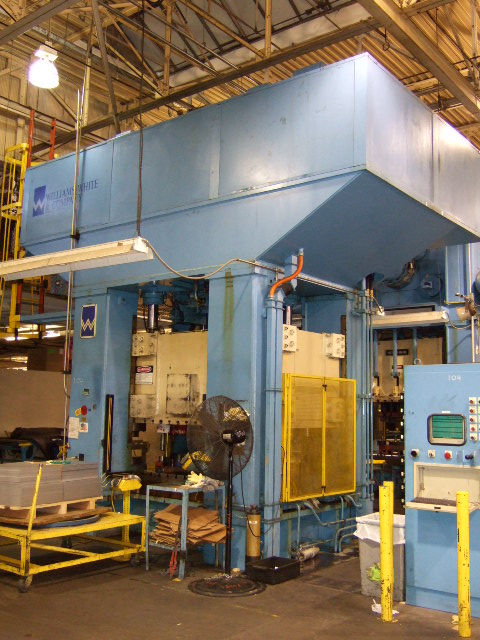

400 Ton Williams
and White Hydraulic Press
Model: H400-66
Year: 1997
Specifications:
Capacity 400 Tons
Stroke 24" Blank
Holder & Main Slide
Daylight 36"
Bed
Size 66" X 54"
Speed 1200 Ipm Fast
Close
200 Ipm Slow
Close
10-100 Ipm
Pressing
50-250 Ipm
Stripping
1000 Ipm Fast
Open
225 Ipm
Cushion Reset
Pressing Single Action 400
Tons
Pressing Double Action 250
Tons
Pressing Blank Holder 150
Tons
Cushion Capacity
100 Tons
Cushion Stroke
10"
Cushion Pad Area
44” x 38”
Weight. 225,000 Lbs
Height 18' 9" Above
Floor
22' Overall
Control Type:
Williams, White & Co PLC Based
Control
IBM Compatible 486 Industrial
Computer w/ VGA Monitor.
Allen Bradley SLC/500 Series
Control Features:
Memory for Part Storage
Fault Monitoring System
Summary Screens for viewing Cycle Parameters
Press Operation Independent of Computer Interface
Display of Draw & Cushion Slide Position & Tonnage
Display of Each Blankholder
Display of Each Blankholder Cylinder Tonnage (4-Corner)
Position Control:
Temposonics, Draw & Cushion Slides
Control Selections:
Position
Limits Stop Open
Slow
Close
Pressing
#1
Pressing
#2
Distance Reverse
Slow Open
Fast
Open
Tonnage
Limits Hold/Pressure Reverse
Blankholder Grip #1
Blankholder Grip #2
Stripping
Velocity
Limits Pressing #1
Pressing
#2
Stripping
Slow
Open
Time
Limits Hold/Pressure Reverse
Cushion Control Limits
Position
Limits Force #1
Force #2
Home
Tonnage
Limits Force #1
Force #2
Reset
Time
Limit Reset Delay
Equipped With:
Plc Control W/Crt
(1) Hydraulic Cushion; 100 Tons
Hydraulic Dampening Device
T-Slotted Bolster & Ram
Water Cooled Heat Exchanger
Gib Guided Ram
Crown Enclosed W/Catwalk
Moveable Ladder For Crown Access
Operator Run Station (4)
Ram & Cushion Controlled By Scale
Feedback
Full Programmable Operation |
