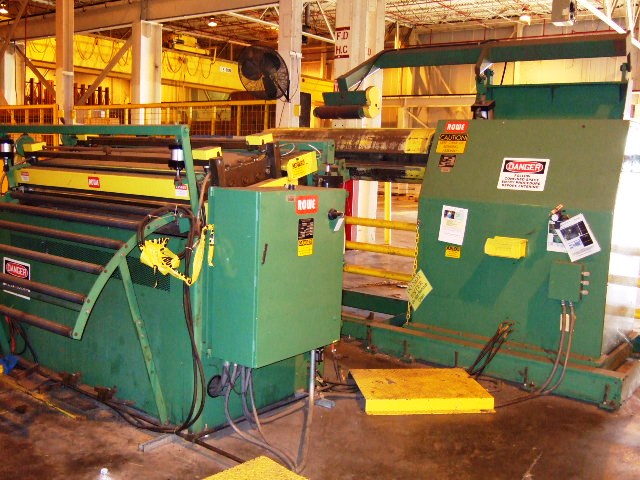

Rowe 72” Servo Feedline

Model: FAC 123-472

New: 2000

Components:

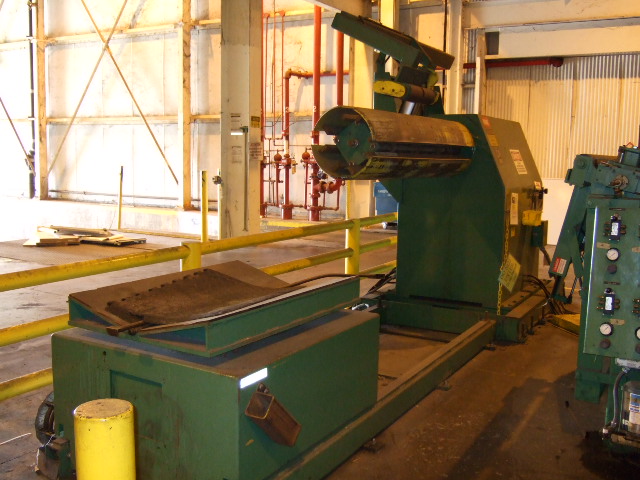

Coil Car

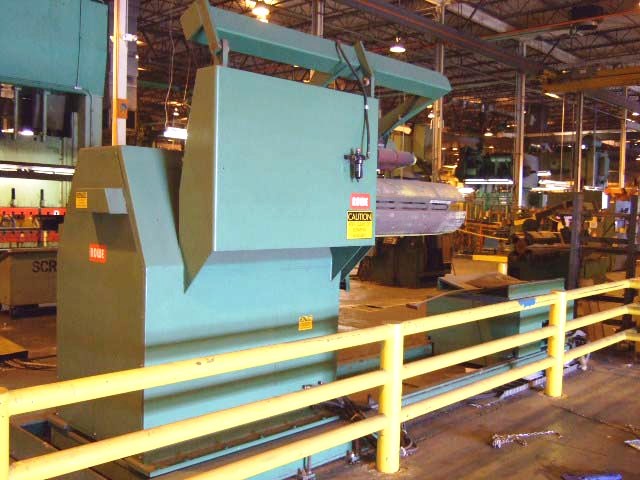

Stock Reel
Hold Down Arm
Peeler
Stock Straightener
Threading Table
Cabinet Type Servo Feeder

Reel Specifications:

Model 200 72h-Dsj

20,000 Lb. Max. Coil Weight

72" Max. Width

60" Od

19" - 24.5" Id

Hydraulic Expansion

Power Feed Up

Pneumatic Brake--Adjustable Tension

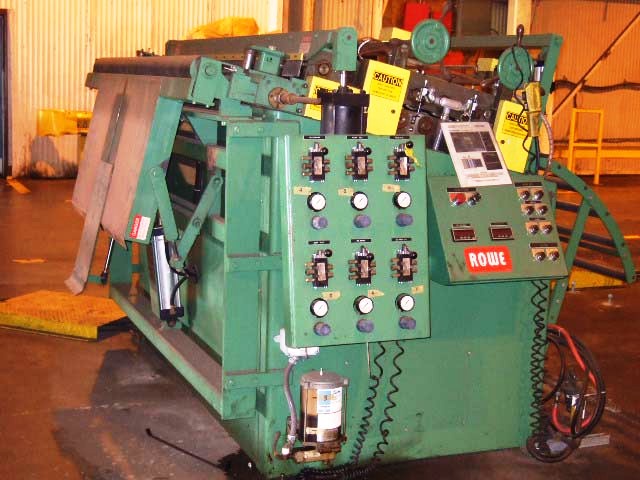

Straightener Specifications:

Model C6-72

Capacity .020" - .075" X 72"

L-R Feed Direction

(4) Coil Breaker Rolls

(2) Pinch Rolls

(7) Straightening Rolls

4.5" Roll Diameter

Digital Roll Depth Indicators

Ac Variable Speed Drive

Ultrasonic Non-Contact Loop Control

Handheld Jog Pendant

Stock Guides

Peeler Table--Pneumatic

Exit Catenary Rolls

Servo Feed Specifications:

Model Fac 123-472

Capacity 72" X .010" - .135"

Indramat Sot Control With Keypad

Ac Servo Drive

Zero Backlash Gearbox

60 Job Memory

0 - 999" Feed Length

Roll Lift For Pilot Operation

In-Motion Micro-Adjust

Pass Line Adjustment
